Introduction:
Optimizing machining sequences is a critical aspect of CNC (Computer Numerical Control) machining that can significantly improve efficiency, reduce cycle times, and enhance productivity. Machining sequence optimization involves strategically planning and organizing the order of machining operations to minimize tool changes, reduce idle time, and maximize material removal rates while ensuring dimensional accuracy and surface finish quality. In this extensive guide, we will delve into the intricacies of optimizing machining sequences, covering essential concepts, best practices, and advanced techniques. Whether you’re a novice CNC machinist or an experienced professional seeking to optimize your machining processes, this guide will equip you with the knowledge and skills necessary to master machining sequence optimization effectively.

Understanding Machining Sequences:
Machining sequences refer to the order in which machining operations are performed on a workpiece to achieve the desired final shape, dimensions, and surface finish. A well-optimized machining sequence minimizes setup time, tool changes, and machine idle time while maximizing material removal rates and machining efficiency. Machining sequences typically include operations such as roughing, semi-finishing, finishing, drilling, tapping, and other specialized machining processes, depending on the complexity of the workpiece and the machining requirements.

Identifying Machining Objectives and Constraints:
Before optimizing machining sequences, it’s essential to identify machining objectives, constraints, and performance requirements for the specific machining operation. Machining objectives may include minimizing cycle time, reducing tool wear, improving surface finish quality, or maximizing material utilization. Additionally, consider constraints such as machine capabilities, tooling limitations, workpiece materials, geometric features, and dimensional tolerances to ensure the selected machining sequence is feasible and effective for the given machining scenario.

Analyzing Workpiece Geometry and Material Properties:
To optimize machining sequences effectively, analyze the geometry and material properties of the workpiece to determine the most efficient and effective machining approach. Consider factors such as workpiece dimensions, features, contours, material hardness, and machinability when planning the machining sequence. Identify areas of the workpiece that require heavy material removal versus those that require fine surface finishing, and prioritize machining operations accordingly to minimize tool changes and optimize machining efficiency.

Leveraging CAD/CAM Software Capabilities:
CAD/CAM (Computer-Aided Design/Computer-Aided Manufacturing) software plays a crucial role in optimizing machining sequences by providing advanced features and functionalities for toolpath generation, simulation, and optimization. Select CAD/CAM software that offers capabilities such as automated toolpath generation, collision detection, multi-axis machining, and optimization algorithms to streamline the optimization process and improve machining efficiency. Utilize software simulation tools to visualize and validate machining sequences, identify potential issues, and refine the sequence before executing it on the CNC machine.

Optimizing Toolpath Strategies:
Once machining objectives, constraints, and workpiece geometry are analyzed, optimize toolpath strategies for each machining operation within the sequence to maximize efficiency and productivity. Consider factors such as cutting parameters, tool selection, stepover values, cutting depths, cutting directions, and coolant usage to optimize toolpath strategies for specific machining requirements. Experiment with different toolpath techniques such as adaptive clearing, high-speed machining, trochoidal milling, and rest machining to achieve optimal material removal rates and surface finish quality.

Minimizing Tool Changes and Machine Idle Time:
A key aspect of machining sequence optimization is minimizing tool changes and machine idle time by grouping similar machining operations and selecting tooling that can perform multiple tasks within the same setup. Analyze the machining sequence to identify opportunities for tool sharing, where a single tool can perform multiple operations consecutively without the need for frequent tool changes. Additionally, optimize toolpath strategies to minimize rapid tool movements, tool retractions, and machine dwell time between operations, further reducing cycle times and maximizing machining efficiency.

Utilizing Multi-Tasking and Multi-Axis Machining:
To further optimize machining sequences, consider leveraging multi-tasking and multi-axis machining capabilities available on modern CNC machines. Multi-tasking machines can perform multiple machining operations simultaneously, allowing for parallel processing and reduced cycle times. Similarly, multi-axis machining allows for complex part geometries to be machined from multiple angles and orientations, enabling more efficient material removal and surface finishing strategies. By utilizing multi-tasking and multi-axis machining, machinists can achieve significant improvements in productivity, accuracy, and versatility in machining sequences.

Validating and Iterating Machining Sequences:

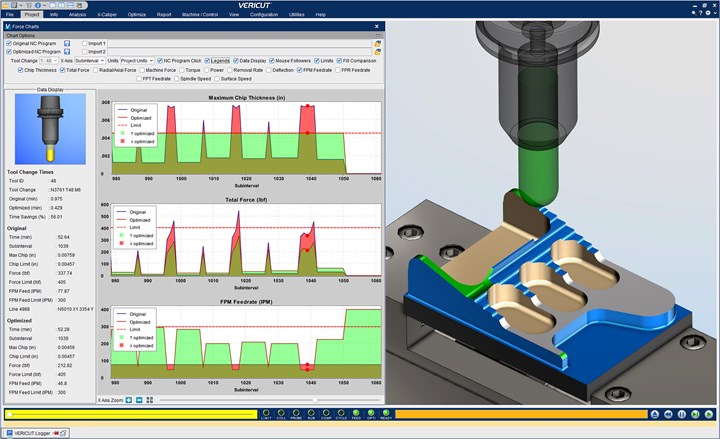

Before executing the optimized machining sequence on the CNC machine, validate and iterate the sequence using CAD/CAM software simulation tools or virtual machining environments. Simulate the machining sequence to visualize toolpaths, verify cutting conditions, detect potential collisions or errors, and optimize machining strategies based on simulation results. Iterate the machining sequence as needed to fine-tune cutting parameters, toolpath strategies, and machining sequences for optimal performance and accuracy.

Implementing Best Practices and Quality Control Measures:
To ensure consistent and reliable results with optimized machining sequences, implement best practices and quality control measures throughout the machining process. Some recommended practices include:

Regularly monitor machining performance, tool wear, surface finish quality, and dimensional accuracy during machining operations using built-in monitoring systems or inspection equipment.

Perform periodic machine maintenance, tool inspections, and calibration procedures to ensure machine accuracy, tool integrity, and machining precision.

Document and track machining parameters, tooling specifications, and process variables to facilitate process optimization, troubleshooting, and continuous improvement initiatives.

Conduct post-machining inspections and quality checks to verify dimensional accuracy, surface finish quality, and compliance with engineering specifications.

Collaborate with colleagues, tooling suppliers, and CAD/CAM software providers to exchange knowledge, share best practices, and stay informed about the latest advancements in machining sequence optimization.

Conclusion:
Optimizing machining sequences is a fundamental aspect of CNC machining that enables machinists to improve efficiency, reduce cycle times, and enhance productivity while maintaining quality and precision. By understanding the principles of machining sequence optimization, leveraging CAD/CAM software capabilities, analyzing workpiece geometry and material properties, optimizing toolpath strategies, minimizing tool changes and machine idle time, utilizing multi-tasking and multi-axis machining, validating and iterating machining sequences, and implementing best practices and quality control measures, machinists can master the art of machining sequence optimization effectively. With the knowledge and skills acquired from this guide, machinists can optimize their machining processes, achieve exceptional machining outcomes, and stay competitive in today’s manufacturing landscape.
